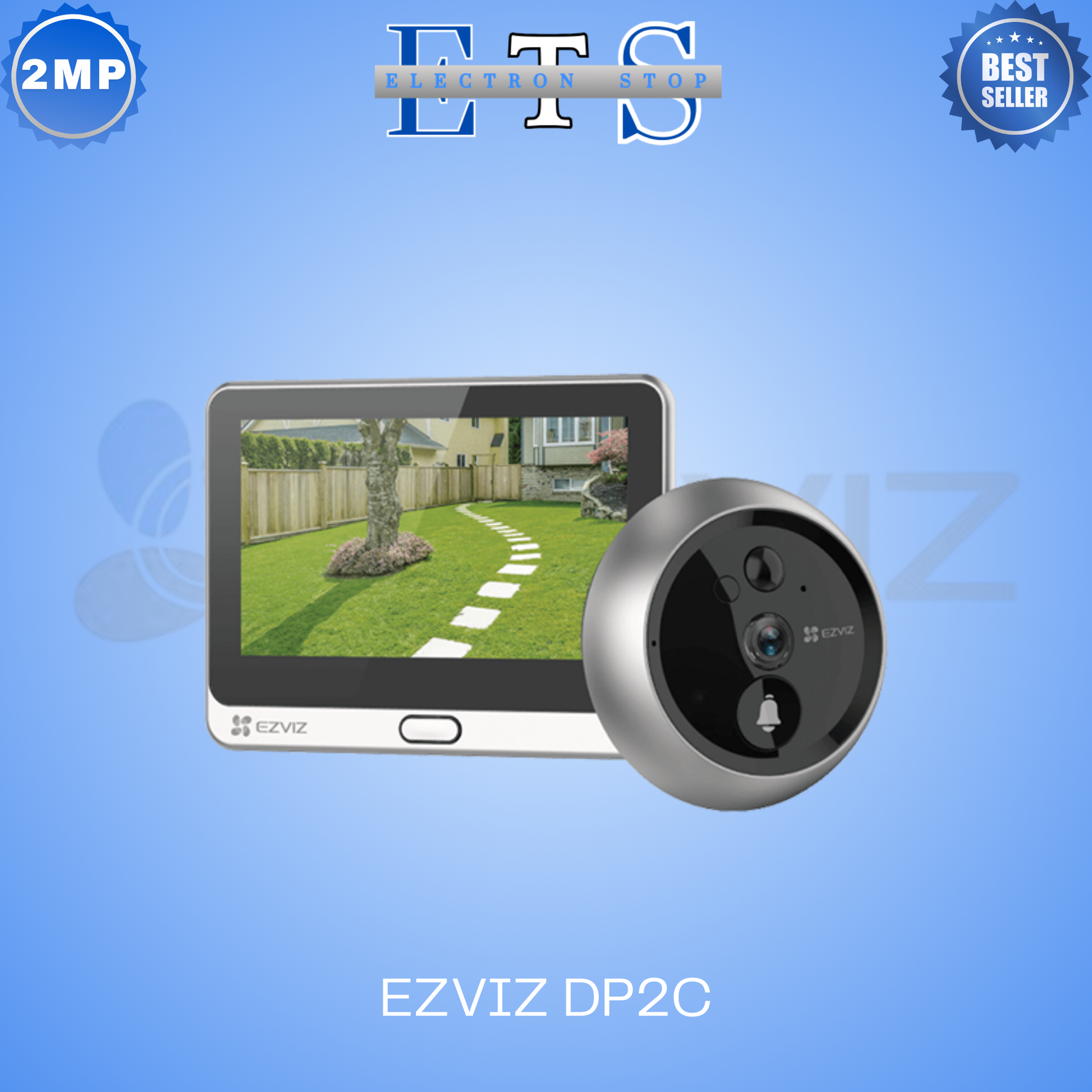

EZVIZ DP2C

Specifications Model: CS-DP2C Installation Details Compatible Hole Diameter: 16.5 to 50 mm (0.65 to 1.97 inch) Compatible Door Diameter: 35 to 105 mm (1.38 to 4.13 inch) Camera Features Sensor: 1/3" Progressive Scan CMOS Lens: 2.0 mm at F2.2 with a 155° diagonal field of view Day/Night Function: ICR infrared filter Infrared Range: Up to 5 meters Maximum Resolution: 1080p (2MP) Video Frame Rate: 15 fps PIR Motion Detection Detection Angle: 110° Detection Range: Up to 6 meters (20 ft) Adjustable Sensitivity Connectivity and Interface Storage: MicroSD card slot supporting up to 512 GB Audio: Built-in high-sensitivity microphone and powerful speaker Buttons: Doorbell, power, and screen wake-up Network and Security Wi-Fi Standard: IEEE802.11b/g/n operating at 2.4 GHz Security Protocols: WEP (64/128-bit), WPA/WPA2, WPA-PSK/WPA2-PSK, WPS Data Transmission Speeds: 11 Mbps (11b), 54 Mbps (11g), and 150 Mbps (11n) Supports EZVIZ Cloud Proprietary Protocol Additional Features No face detection support Intelligent PIR motion alerts Local and remote two-way video intercom Cloud and image encryption for enhanced security General Specifications Display: 4.3-inch color screen Available Colors: Silver and Gold Operating Conditions: -10°C to 45°C, humidity up to 95% (non-condensing) Power Supply: DC 5V (±10%) Maximum Power Consumption: 2.2W Dimensions: Screen and base – 115.5 x 85.5 x 24.5 mm; Peephole doorbell – 71 x 71 x 48.3 mm Weight: 302 g (10.65 oz) Package Contents DP2C Peephole Doorbell Panel Mounting Base Power Cable Six Screws Quick Start Guide
